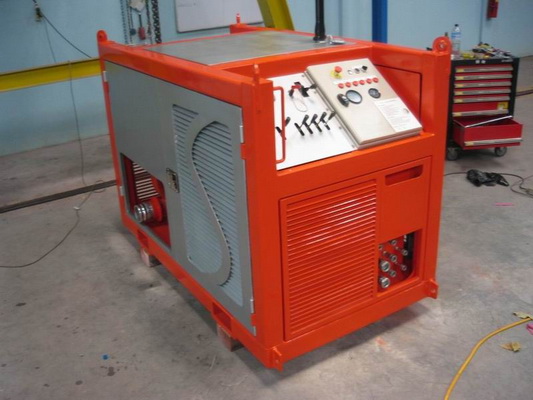

Multifunction Hydraulic Power Pack 50KW -

Rig Save

Diesel Engine Driven Multifunction Hydraulic Power pack designed with multi rate output of hydraulic supply power for some hydraulic equipment in its job sequence on oil spill control services such as: Hydraulic winch for Oil Boom, Hydraulic Air Blower/Suction, Hydraulic oil spill Skimmer unit, and Hydraulic Transfer Pump Unit. The unit operation would be at onshore (pier or riverside) or at offshore (on boat)

Design improvement:

  • More efficient in dimension
  • User friendly
  • Construction
  • Weight reduced
  • Aesthetics

Technical Specification:

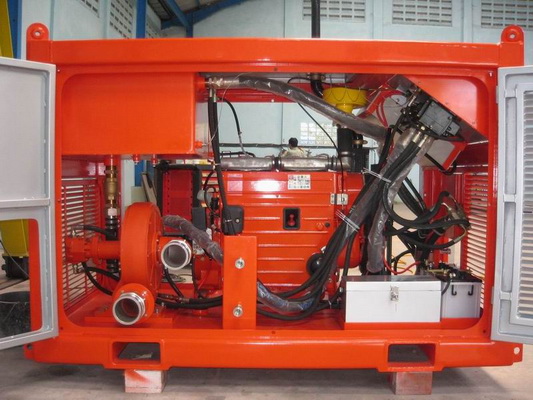

  • Hatz 4 cylinders Diesel Engine 50KW @2300RPM, 3432 Ltr, air cooled system.
  • Chalwyn air intake over run shutdown system c/w dry type air cleaner
  • Exhaust Gas Flame Trap and Spark Arrestor
  • Alternator14V@1500RPM&12V/140Ah Battery
  • Electric Motor Starter
  • Engine Control Panel System
  • 70 Ltrs Fuel and 125 Ltrs Hyd.Fluid Tank Cap.
  • Danfoss Open Loop Hydraulic System, 210bar
  • Hydraulic Oil Cooler Radiator
  • Hydraulic Motor Driven Air Blower
  • Multirate Hydraulic Output Connection from
  • 10-160LPM with quick coupling
  • Frame Dimension: L2000xW1100xH1370mm
  • Maximum Gross Weight : 1500Kg
  • Forklift pockets & four points lifting eyes
  • Protective covers and side doors
  • Standard Marine top coating

Testing and Certification:

  • Structural Manufacturing Standard according to BSEN 12079 Part 1 & 2 : 2006 and DNV 2.7-1: 2006 for standard offshore container certified by: Bureau Veritas Indonesia

User Handbook

  • General Information
  • Safety Precautions
  • Operation Instructions
  • Preventive Maintenance
  • Parts Book
