Multifunction Hydraulic Power Pack 25KW -

Rig Save

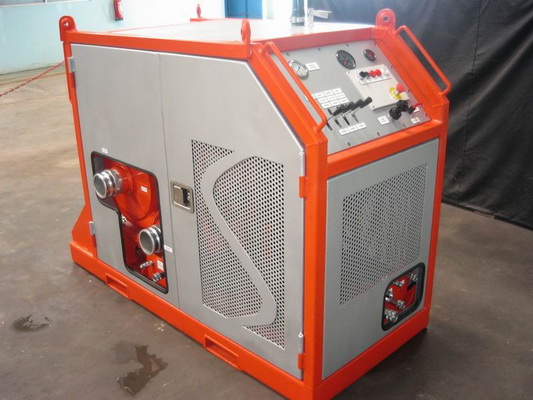

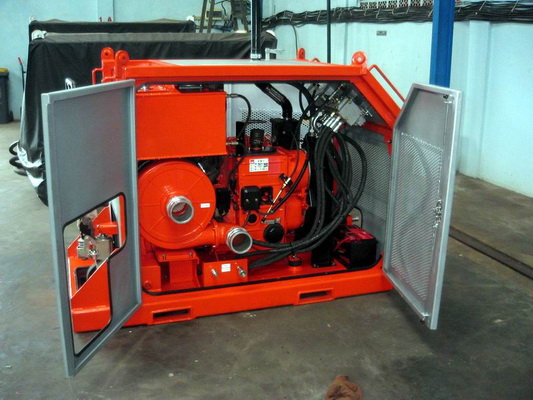

Diesel Engine Driven Multifunction Hydraulic Power pack designed with multi rate output of hydraulic supply power for some hydraulic equipment in its job sequence on oil spill control services such as: Hydraulic winch for Oil Boom, Hydraulic Air Blower/Suction, Hydraulic oil spill Skimmer unit, and Hydraulic Transfer Pump Unit. The unit operation would be at onshore (pier or riverside) or at offshore (on boat)

Design improvement:

  • Compact dimension
  • User friendly
  • Construction
  • Weight reduced
  • Aesthetics

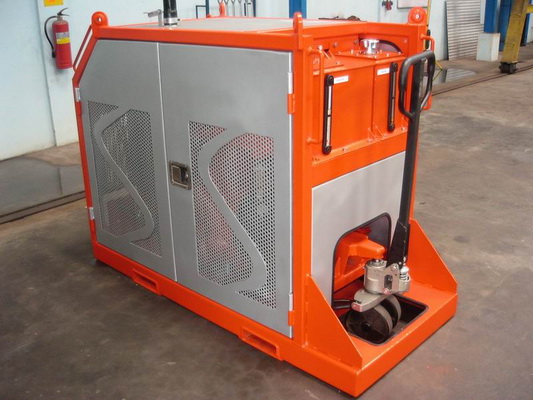

  • Hydraulic Jack Up Castor Wheels

Technical Specification:

  • Hatz 2 cylinders Diesel Engine 25KW @2300RPM, 3432 Ltr, air cooled system.
  • Chalwyn air intake over run shutdown system c/w dry type air cleaner
  • Exhaust Gas Flame Trap and Spark Arrestor
  • Alternator14V/42A@1500RPM&12V/100Ah Battery
  • Electric Motor Starter
  • Engine Control Panel System
  • 35 Ltrs Fuel and 60 Ltrs Hyd.Fluid Tank Cap.
  • Danfoss Open Loop Hydraulic System, max. pressure 210bar
  • Hydraulic Oil Cooler Radiator
  • Hydraulic Motor Driven Air Blower
  • Multirate Hydraulic Output Connection from
  • 10-80LPM with quick coupling
  • Frame Dimension: L1800xW800xH1200mm
  • Maximum Gross Weight : 1000Kg
  • Forklift pockets & four points lifting eyes
  • Protective covers and side doors
  • Standard Marine top coating

Testing and Certification:

  • Structural Manufacturing Inspection Standard (MPI, Load Test) certified by: Bureau Veritas Indonesia

User Handbook

  • General Information
  • Safety Precautions
  • Operation Instructions
  • Preventive Maintenance
  • Parts Book
