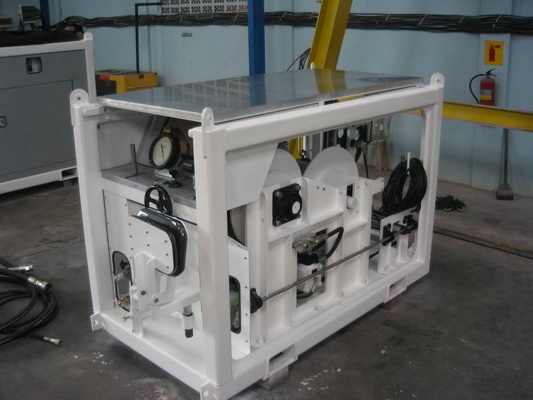

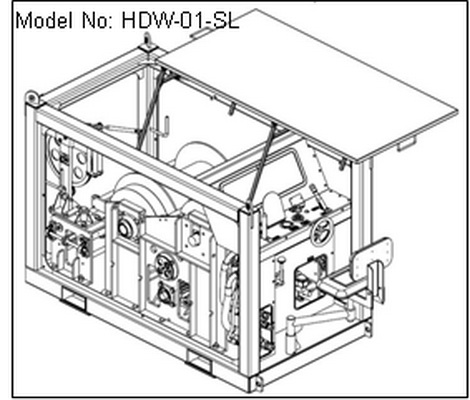

Heavy Duty Dual Winch Slickline Unit

Hydraulic Slickline Winch Unit designed for heavy duty slickline operation for well intervention services. This winch unit designed with very compact dimension and split from its power pack to get minimum weight during mobilization to area with minimum handling equipment.

Technical Specification:

  • Reel capacities :
      • Upper Drum : 20000 feet of 0.108” wire
      • Lower Drum : 20000 feet of 0.125” wire
  • 4speed heavy duty transmission gear box
  • Spur Gear Drive Power Transfer
  • Double Piston Caliper Disc Brake with Booster for upper and lower drum
  • Standard Measure Head Assembly
      • Single Adjustable Hand Brake Control Handle
      • Protector Visor for Operator
      • Four Way Valve Control Handle
      • Adjustable and Foldable Seat (no need to install/uninstall during mobilize)
      • Hydraulic Open Loop system Torque : 115Lb.In/100Psi
      • Max Hydraulic Pressure: 175 bar (2537 Psi)
      • 1 inch, 1-1/4 inch, and ½ inch Hydraulic Quick Coupling Connection

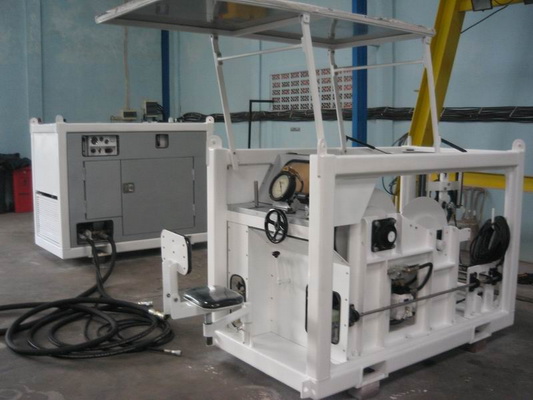

  • Flexible Top Cover, double function as operator canopy during operation and as top cover during mobilization or standby
  • Frame Dimension: L2000xW1100xH1500mm
  • Maximum Gross Weight : 2000Kg
  • Forklift pockets & four points lifting eyes
  • Protective covers and side doors
  • Standard Marine top coating

Testing and Certification:

  • Structural Manufacturing Standard according to BS EN 12079 Part 1 & 2 : 2006 and DNV 2.7-1: 2006 for standard offshore container certified by: Bureau Veritas Indonesia

User Handbook

  • General Information
  • Safety Precautions
  • Operation Instructions
  • Preventive Maintenance
  • Parts Book
