This Hydraulic Slickline Containerized Unit designed for medium duty slickline operation for well intervention services.

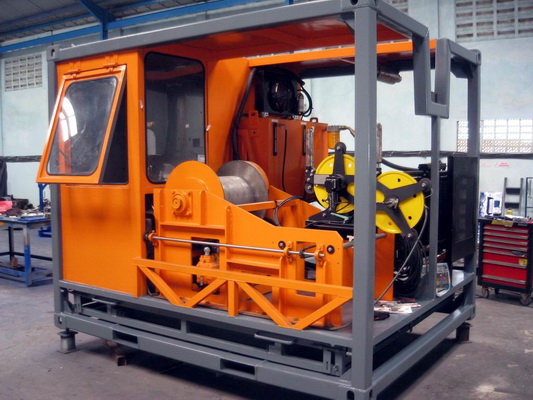

This unit designed with its powerpack and operator cabin in one skid with 10Ft container standard size complete with raiser and tools compartment on lower side. of very compact dimension and split from its power pack to get minimum weight during mobilization to area with minimum handling equipment.

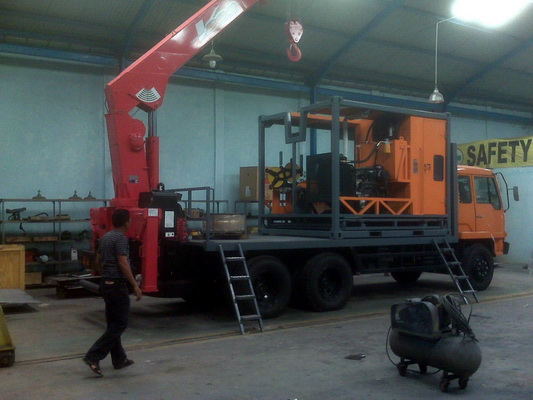

This Containerized unit mounted on the flat bed of crane truck for on-shore operation.

The winch system equipped with both mechanical and digital measuring system for recording and monitoring the line speed, tension and depth

Technical Specification:

•  - Perkins Engine type 1104A-44T, 4 cylinders, 4.4 Liters,
•  - Power 87.8 HP at 1500R
•  - 80 Liters Diesel Tank Capacity
•  - 200 Liters Hydraulic Oil Tank Capacity
•  - Vickers Hydraulic Open Loop system
•  - Drum capacities :
•      - Option 1 : 22000 feet of 0.125” OD wire
•      - Option 2 : 20000 feet of 3/16” OD Braided wire
•  - Four speed heavy duty transmission gear box
•  - Double Piston Caliper Disc Brake with Booster for upper and lower drum
•  - Hand Wheel Drive Level Wind Mechanism for measuring head assembly
•  - 16 inc Diameter Double Counter Wheel with digital and mechanical measuring system with
•  - Single Adjustable Hand Brake Control Handle
•  - Digital Smart Monitor with touch screen & keyboard with Digital Backup depth display
•  - Portable Weight Indicator c/w load cell
•  - Mechanical Depth Counter Display (feet unit)
•  - Air Conditioner system
•  - Dimension : L2991mm x W 2438mm x H2438mm
•  - Maximum gross weight ; 5000kg
•  - Compact Tool box and PCE Slot at bottom side
•  - Four Point Lifting Eyes and Forklift Pockets

Manufacturing Documents :

•  - Certificate of Conformity
•  - FAT check list
•  - Inspection Test Plan
•  - General Specification
•  - Structural Calculation, Specification and Drawing
•  - Specification For Welding Procedures and Welder Certificates
•  - Material Traceability (Mill Certificates)
•  - Manufacturing Schedule
•  - Magnetic Particle Examination Report
•  - Lifting Test Certificate & Report
