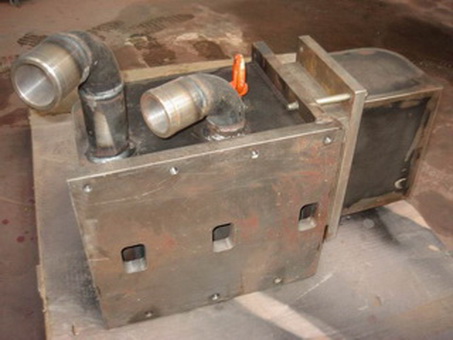

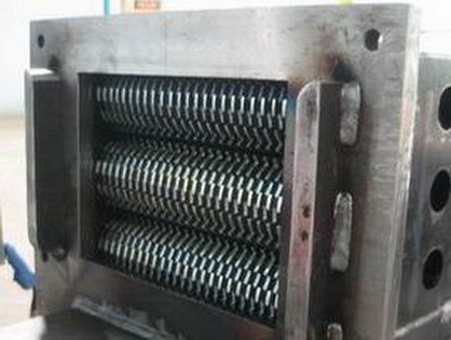

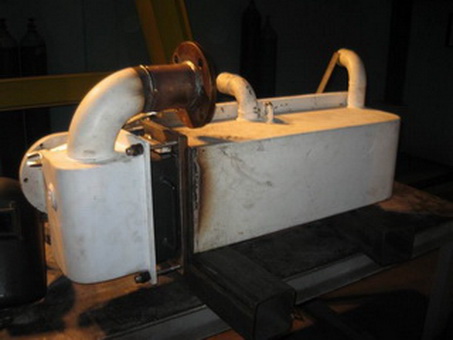

Exhaust Gas Cooler T3:200deg.C Zone 2

Exhaust Gas Cooler for installed on Perkins Diesel Engine 1006-6 (six cylinders engine) & 1103 (three cylinders engine) Series, to reduce working temperature below 200deg.C according to EEMUA 107 recommendation for Diesel Engine operating in zone 2 potentially flammable atmosphere.

Design improvement:

  • More efficient in dimension
  • Heat transfer coefficient
  • Construction
  • Weight reduced
  • Aesthetics

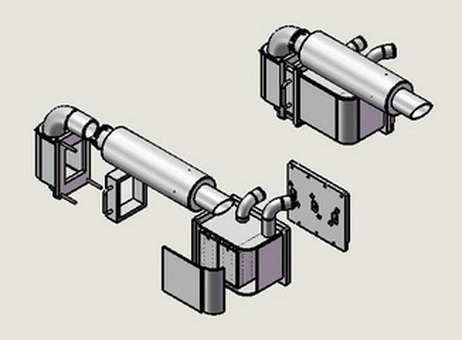

Additional Parts for complete assembly:

  • Stainless Steel Exhaust Gas Flame Trap
  • Dummy Flame Trap
  • Stainless Steel Spark Arrestor
  • Adaptor Plate
  • Hi Temperature Control Valve (200deg.C)
  • Temperature Probe & Gauge
  • Air Inlet Automatic Shut Down Valve

Non destructive test:

  • Hydro test for leaking test
  • DPI test on welding root

User Handbook

  • General Information
  • Safety Precautions
  • Operation Instructions
  • Preventive Maintenance
  • Parts Book
